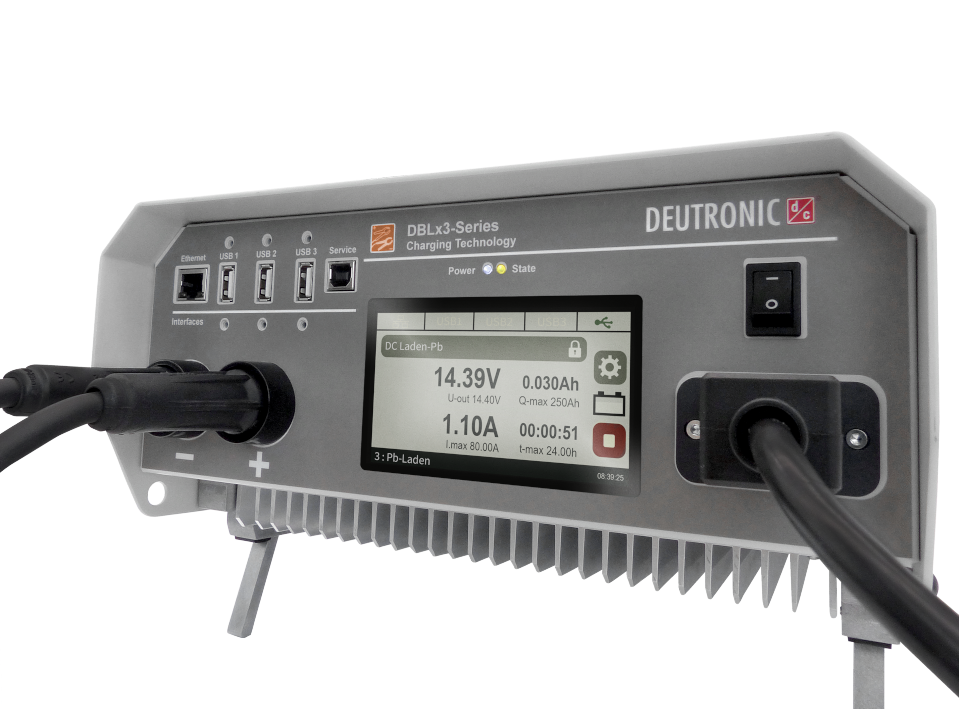

DBL1903-14
As a further development of the proven DBL series, the new generation of chargers makes the transition to smart use in manufacturing plants or workshops. The innovative DBLx3 production and workshop chargers offer the additional added value required with regard to Industry 4.0 and smart networking.
l High level of user-friendliness thanks to commissioning wizard and choice of 21 languages
l Smart and safe charging or supplying up to 120A through automatic selection between charging and FSV
l Suitable for lead-acid, gel, AGM, fleece and lithium-ion batteries
l Clear selection menu for various charging programs: Pb charging, Li charging, FSV mode, PowerUp function as well as long-term charging programs for Pb/Li
l Precise load detection guarantees that the charger is switched on even at the lowest loads
l For industrial manufacturing use on the production line, for rework stations as well as for use in the workshop area
l Great flexibility in application due to the possibility of configuring additional customer-specific charging programs with individual parameterization
l Wide range input 100–240VAC and permanent output current 120A at 1900W
l The “automatic battery detection” function is offered as a customer-spezific solution
l Short circuit and reverse polarity protection
l Protection against defective batteries
l Reliable sparking suppression
l Option: Customized charging parameters
l Utilized and approved by well known automotive manufacturers
● Typelist:
| Type | Input voltage | Output voltage | Output current | Cat. no. |
|---|---|---|---|---|
| DBL1903-14 | 100-240VAC | 14,4/14,0VDC | 120A | 107241/x/yyy |
● Charging cables
| Typelist | Request | Cat. no. |
|---|---|---|
| 3 m, 16mm² rubber cable H01N2D with terminals and crocodile clamps | on request | 140707 |
| 5 m, 16mm² rubber cable H01N2D with terminals and crocodile clamps | recommendet | 140708 |
| 5 m, 25mm² rubber cable H01N2D with terminals and crocodile clamps | on request | 140710 |
● ACCESSOIRES
| Typelist | Cat. no. |
|---|---|
| Trolley for one DBL standard | 140526 |
| Wall mounting device DBL B-versions | 140418 |
| Wall mounting device DBL standard | 140551 |
| Mounting for signal lamp (100cm) | 140591 |
| Mounting for signal lamp (20cm) | 140591/1 |
| DBL-SIG-LRv2 Indicator without accustic signaling; cable 2,5 mtr. | 107492 |
| DBL-SIG-LRv2 Indicator without accustic signaling; cable 0,5 mtr. | 107492/1 |
